Linked List 介紹

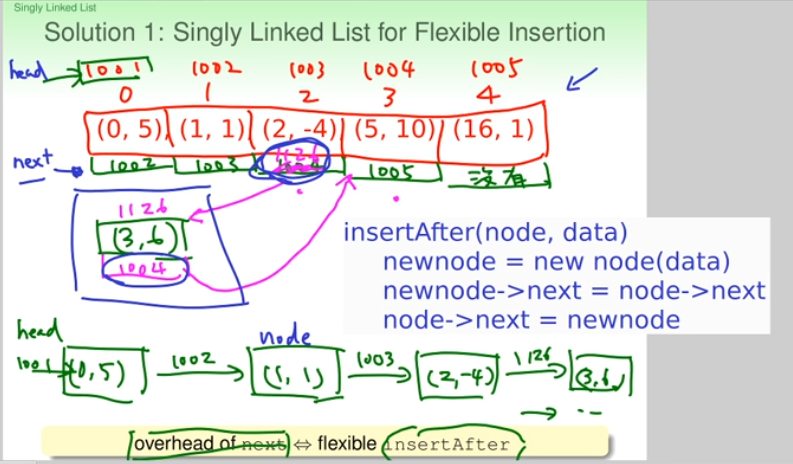

Singly Linked List

Access

Compare with array:

  • linked list: sequential access
  • array: random access

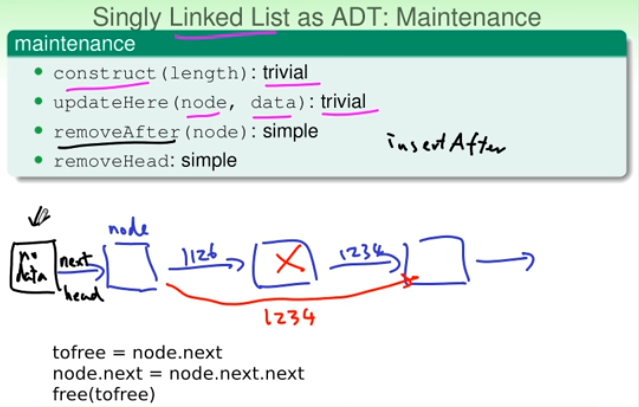

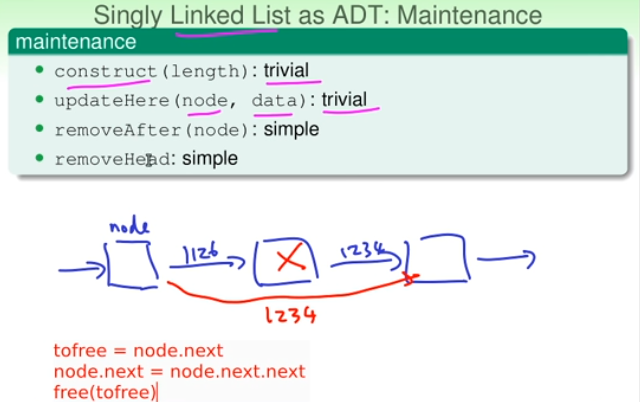

Maintenance

Dummy Head Node

Python code

dummy = ListNode(None)
dummy.next = head
curr = dummy

Doubly Linked List

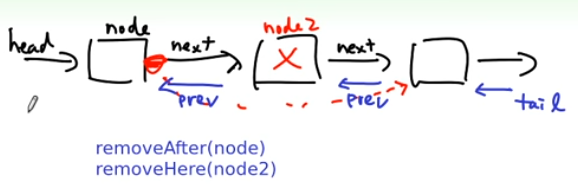

在 Singly Linked List 時，當你要移除特定node時會很麻煩， 因為你不知道他的前一個node是誰,所以只能從Head開始一直next直到找到為止

Soulution: 在每個node裡多放一個prev的小紙條

這就是所謂的 Doubly Linked List

Iterator for Sequential Access

開頭(head),結尾(end),下一個(node->next)

singly linked list;
for (node = head; node != end; node = node->next){
}

reverser doubly linked list;
for (node = tail; node != end; node = node->prev){
}

for (index = 0; index <= tail; index++){
}

只要結構差不多，都有這三個，那麼同樣的演算法就可以套用在不同data structure上

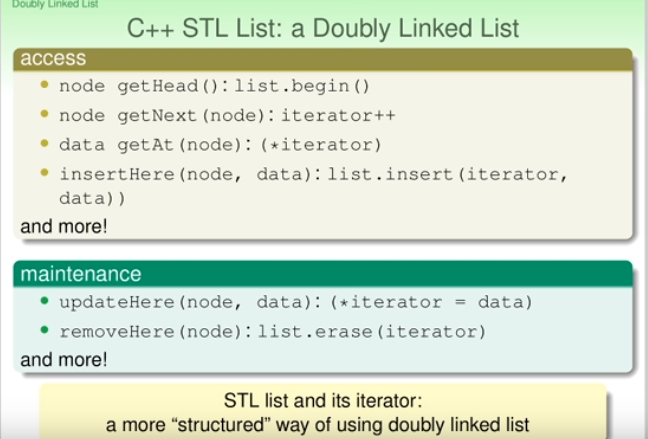

C++ STL List: a Doubly Linked List

  • 因為 List 是 Doubly Linked List，所以不能像array或vector一樣進行 random access

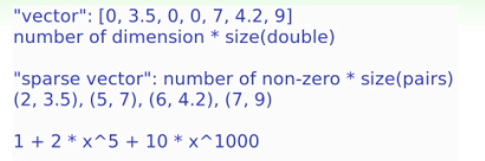

Linked List for Sparse Vectors

Application: Sparse Vector in Scientific Computing

  • polynomial: can be viewed as special case of sparse vector

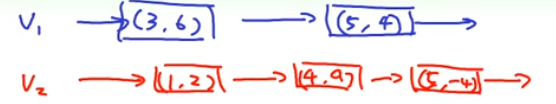

Merging Sparse Vectors

Q: algorithm for “merging” sparse vectors

  • running cursors algorithm

    while (!c1.end() && !c2.end()) {
  if (c1->order < c2->order) {
    res.insert_back(c1); c1++;
  } else if (c1->order > c2->order) {
    res.insert_back(c2); c2++;
  } else {
    res.insert_back(c1 "+" c2);
    c1++; c2++;
  }
}
insert_back others;

Linked List in Job interview

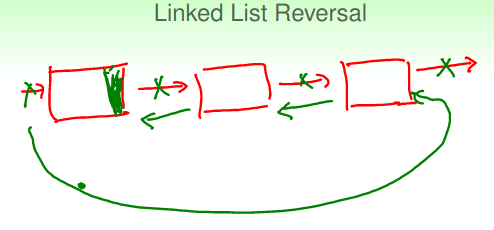

  1. Linked List Reversal

  1. Cycle in Linked List

    • tortoise-hare (turtle-rabbit) algorithm

      two pointers, one moving twice as fast (the hare) than the other (the tortoise).

  2. Middle of Linked List

    • two pass algorithm (O(N+N/2))
    • tortoise-hare algorithm

Binary search in Linked List: Skip List

一般在 Linked List 中 search 非常慢，因為它是 sequence search。那麼如何在 Linked List 中使用 binart search 來提升 search 速度呢？

The Tortoise-Hare Algorithm to find Middle element of Linked List

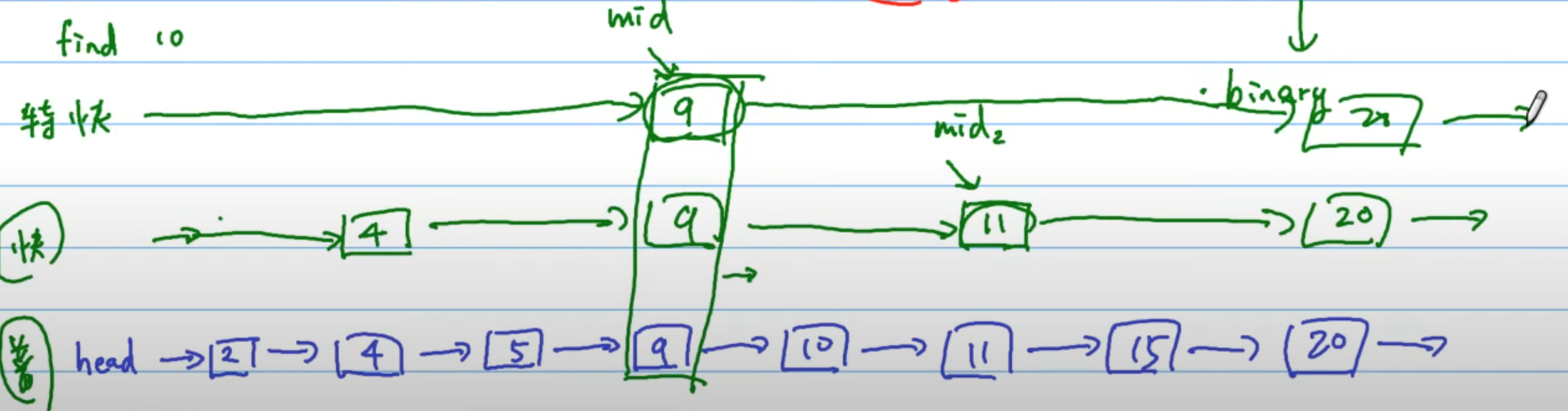

首先我們先來看看如何找 Linked List 的 中點 (middle)，如下所示:

上面就是所謂的"龜兔賽跑演算法(tortoise-hare algorithm)"

想成: 一個是區間車每站都停，另一個是快車只停大站。

Python code

# find the middle of the linked list
slow = fast = head
while fast and fast.next:
    slow = slow.next
    fast = fast.next.next

# return the slow pointer,
# which is the middle node.
return slow

Skip list

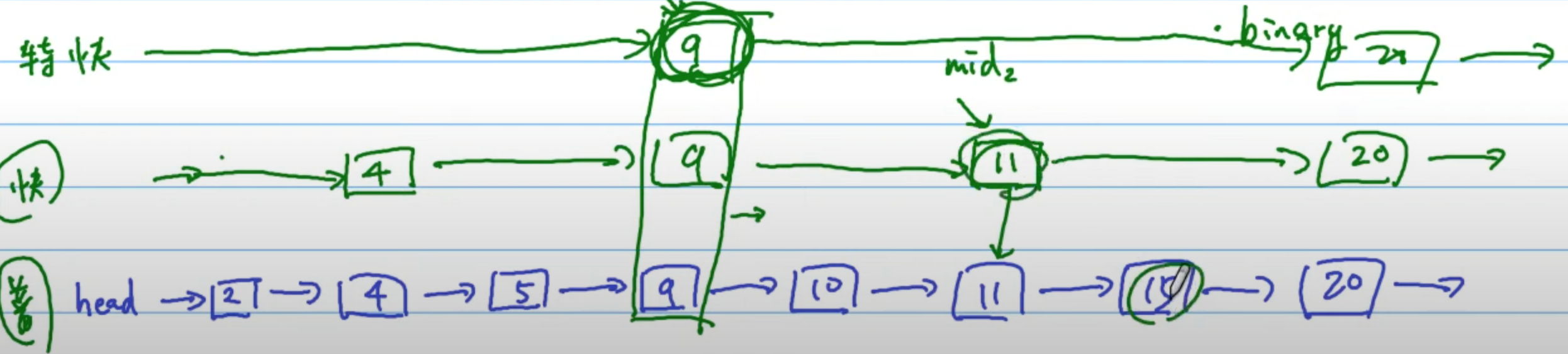

所以在原來的 Linked List 上再加上幾個"快車"的 Linked List 就是 "Skip list"，如下所示:

要找 15:

特快: 15 > "9", 15 < 20
快: 15 > 9, 15 > "11", 15 < 20
一般: 15 > 9, 15 > 11 -> find "15"

Other Example:
